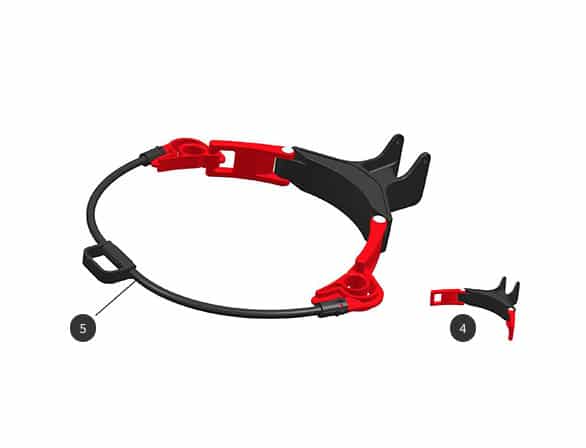

Lower bag support

4
Lower bag support complete with wings WITHOUT STRAP
5
Lower bag strap

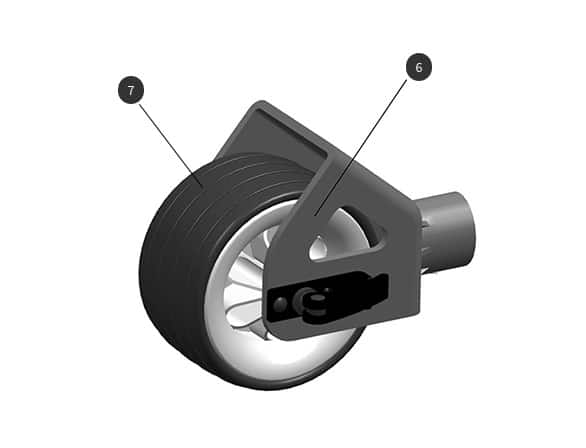

Front wheel

6
Complete front wheel assembly with housing and hub
7
Front Wheel Only

Motor & Gear box

8

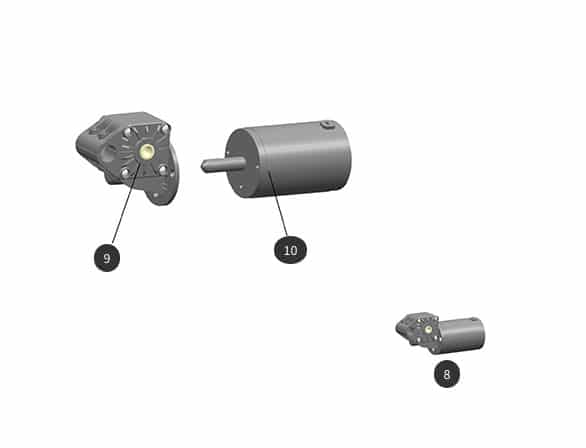

Motor and Gearbox complete
9
ELK GT & AT Gearbox Assembly
10
E.L.K Motor only

Rear Wheel - Left

11
Rear Wheel Complete Left
12
Left Clutch Outer & sleeve upgraded
13
Private: Rear Main Wheel
14
Spring for main wheel
15
Main Wheel Quick Release Retaining Collar
16
Wheel Lock Housing without Logo (Hub Cap)

Rear Wheel - Right

17

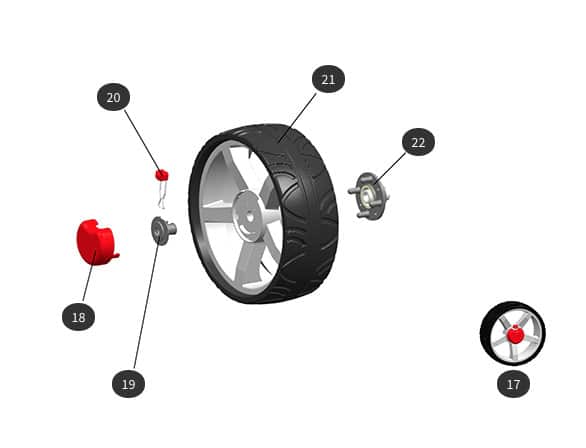

Rear Wheel complete Right
18
Wheel Lock Housing without Logo (Hub Cap)
19
Main Wheel Quick Release Retaining Collar
20
Spring for main wheel
21
Private: Rear Main Wheel
22
Private: Right Clutch Outer & sleeve upgraded

Sand Bucket Holder

23
Sand bucket holder complete
24
Sand Bucket screw

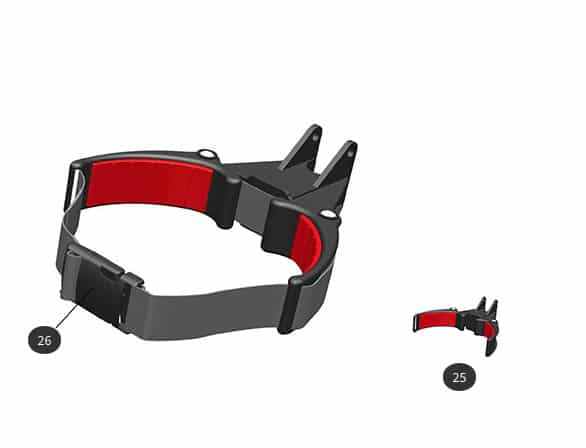

Upper bag support

25
Upper bag support complete with wings & top bag strap
26
Upper bag strap

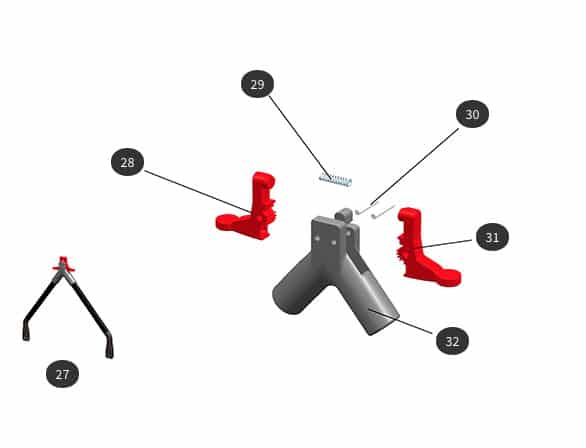

Upper Frame Sub Assembly 1

27
Lower frame support section including release mechanism
28
Frame Clip L
29
Spring
30
Pin for locking mechanism
31
Frame Clip R
32
Upper A-Frame Catch

Upper Frame Sub Assembly 2

33
Upper Frame sub assembly with tube and connector and lock to support frame WITHOUT handle and upper bag holder
34

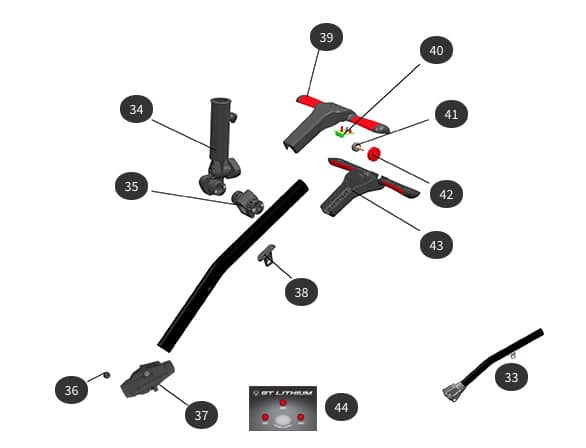

Umbrella Holder
35
Umbrella holder mount
36
Cap Cover Small
37
Upper & Lower Frame Central Folding Bracket
38
Hold Together Bracket
39
Handle Upper – No Longer Available
40
Distance Function PCB
41
Potentiometer for E.L.K AT Lithium & GT Lithium Upgraded Green Handle
42
Control Knob
43
Handle Lower – No Longer Available
44
Handle Sticker

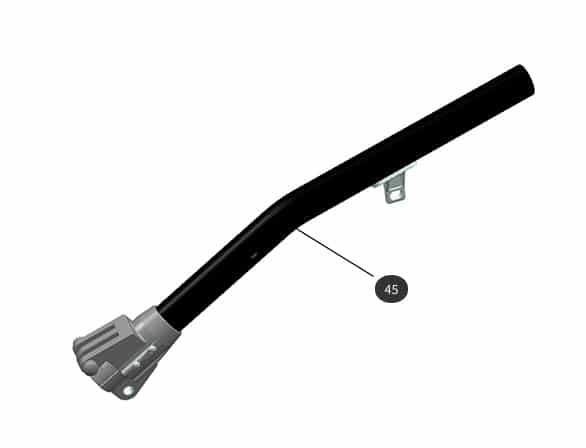

Upper Frame Sub Assembly 3

45
Upper Frame sub assembly with tube and connector and lock to support frame WITHOUT handle and upper bag holder

Lower Frame Sub Assembly

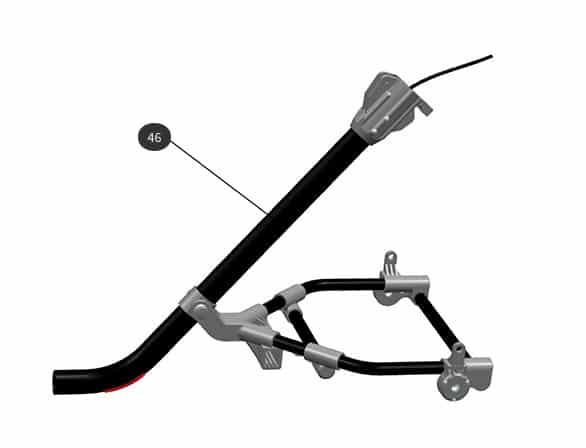

46
Lower Frame sub assembly with stem cable and connecting with lower tube.(The lower tube is WITHOUT front wheel, wheel housing and bag holder)

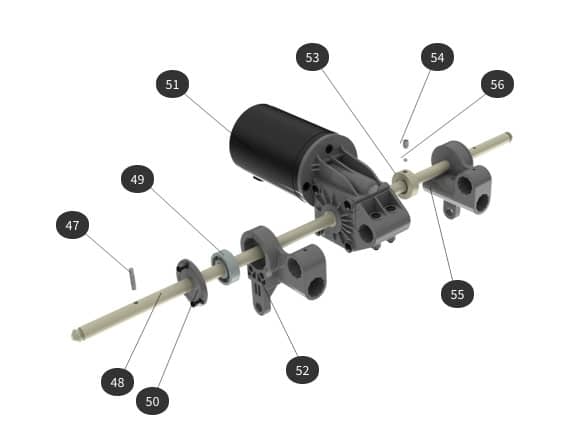

Motor

47
Solid driver pin
48
Spindle (Axle)
49
Axle Bearing
50
Bearing Cover
51
Motor and Gearbox complete
52
L/H Bearing Housing
53
Main drive Locking ring
54
Grub Screw
55
R/H Bearing Housing

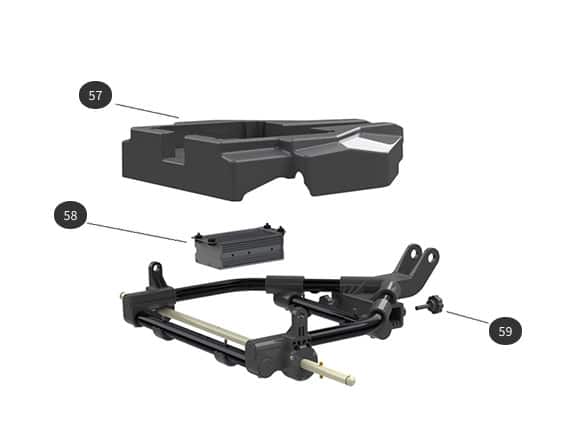

Battery Tray

57
Battery Tray
58
Control Box
59
Seat locating screw
